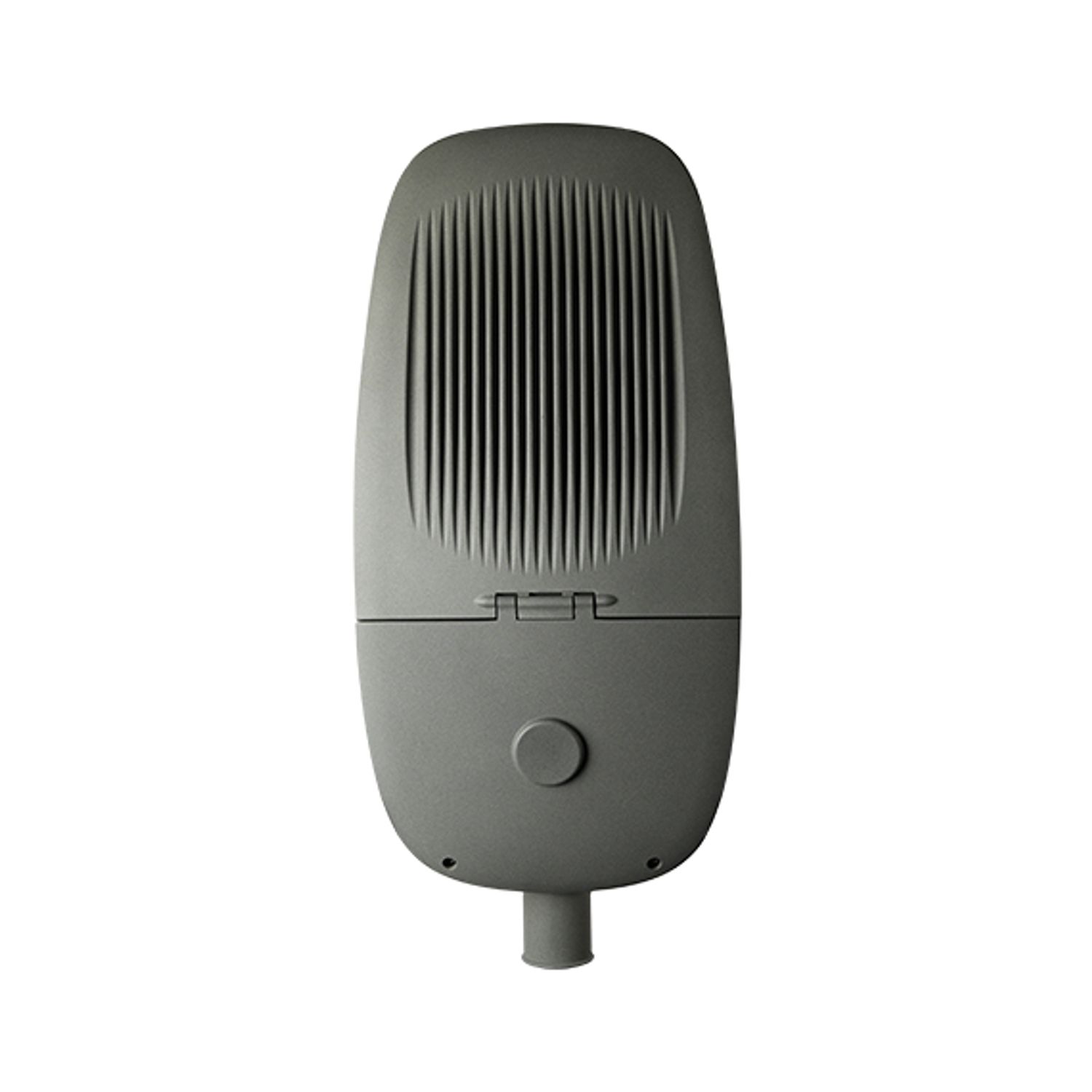

90 Watt Led Street Light, 50~240W, Optional Outdoor Wall Installation, IP65 & IP66

ASL43

  • It has a luminous efficiency of 140Lm/W, which is extremely cost-effective in its category.
  • This street light has great wind resistance, with protection levels of IP65, and IK08.
  • The option of built-in light sensor is available that allows the system to turn on the light at dark and turn it off at daylight auto-matically, making it perfect for all types of installation. Also there are external light sensors.

BRAND LED LAMP BEADS
HIGH BRIGHTNESS,HIGH COLOR RENDERING,LONG LIFESPAN
BREAKER
THE DRIVER ROOM IS EQUIPPED WITH A SAFTY SWITCH TO ENSURE
THE SAFETY OF THE INSTALLATION AND MAINTENANCE PERSONNEL
Product Model Wattage Input Voltage Luminous Efficacy(MAX) RA Color Temperature Beam Angle PF Pole diameter
(mm)
Dimension(mm)
ASL43-A 50-60W  AC100-277V 140Lm/W >70|80|90 2200-6500K Type I | Type II | Type III >0.95 A:φ 50 | 60
BCD:φ 60
520*210*110
ASL43-B 90-100W  AC100-277V 140Lm/W >70|80|90 2200-6500K Type I | Type II | Type III >0.95 A:φ 50 | 60
BCD:φ 60
650*255*135
ASL43-C 120-150W  AC100-277V 140Lm/W >70|80|90 2200-6500K Type I | Type II | Type III >0.95 A:φ 50 | 60
BCD:φ 60
700*300*135
ASL43-D 200-240W  AC100-277V 140Lm/W >70|80|90 2200-6500K Type I | Type II | Type III >0.95 A:φ 50 | 60
BCD:φ 60
860*360*145
PRODUCT DESCRIPTION

  • It has a luminous efficiency of 140Lm/W, which is extremely cost-effective in its category.
  • This street light has great wind resistance, with protection levels of IP65, and IK08.
  • The option of built-in light sensor is available that allows the system to turn on the light at dark and turn it off at daylight auto-matically, making it perfect for all types of installation. Also there are external light sensors.

BRAND LED LAMP BEADS
HIGH BRIGHTNESS,HIGH COLOR RENDERING,LONG LIFESPAN
BREAKER
THE DRIVER ROOM IS EQUIPPED WITH A SAFTY SWITCH TO ENSURE
THE SAFETY OF THE INSTALLATION AND MAINTENANCE PERSONNEL
SPECIFICATION
Product Model Wattage Input Voltage Luminous Efficacy(MAX) RA Color Temperature Beam Angle PF Pole diameter
(mm)
Dimension(mm)
ASL43-A 50-60W  AC100-277V 140Lm/W >70|80|90 2200-6500K Type I | Type II | Type III >0.95 A:φ 50 | 60
BCD:φ 60
520*210*110
ASL43-B 90-100W  AC100-277V 140Lm/W >70|80|90 2200-6500K Type I | Type II | Type III >0.95 A:φ 50 | 60
BCD:φ 60
650*255*135
ASL43-C 120-150W  AC100-277V 140Lm/W >70|80|90 2200-6500K Type I | Type II | Type III >0.95 A:φ 50 | 60
BCD:φ 60
700*300*135
ASL43-D 200-240W  AC100-277V 140Lm/W >70|80|90 2200-6500K Type I | Type II | Type III >0.95 A:φ 50 | 60
BCD:φ 60
860*360*145

Application

Roads

Residential Streets

Bridges

Parking Lot

Airport

Port
